Product Features
1.Additional built-in self-check circuit checks electronic circuit automatically to monitor operation safety.
2.Efficient design reduces weight by 50% compared to conventional systems.
3.Negative effects of ambient light are reduced compared to the previous SE model.
4.Energy-saving circuitry reduces power consumption by 50%.
5.Down-sized light sensor allows for an expanded working area.
6. Special filter improves strength against staining and tarnishing.
Kinds
Detective distance
Optical axis pitch
Protection height
No. of optical axis
Models
0.4~3M
40mm
200mm
6
SEII-24
280mm
8
SEII-32
360mm
10
SEII-40
440mm
12
SEII-48
Product Features

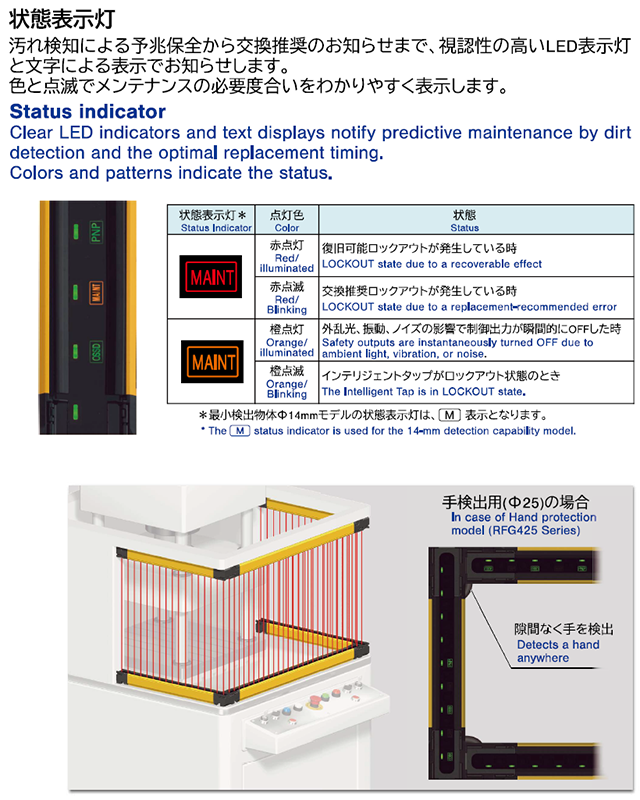

1.LED indicator bar for easy operation.
2. Variety of built-in safety functions in the sensor unit.
3. Type 4 safety light curtain conforming to IEC and EN.
4. Immediate emergency stop.Achieved the highest degree of safety.
5. Complete failsafe design -the self-diagnosis function turns off the output of emission in case of malfunction.
6.Safety design backed by advanced technology. The highest-level safety design engineering and FMEA.

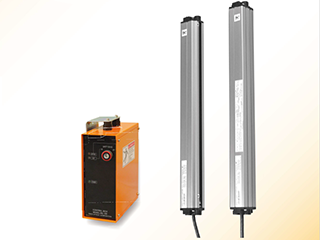

RIKEN Direct Projection Type-RSL230 Series
Product Features
1. 20mm pitch optical axes accurately cover the protection area without fail.
2. 8~100 optical axes types in the unit of every 4-optical-axes are available and selectable from 140~1,980mm length variation.
3. Light and slim design requires minimum installation space and thus allows large workspace.

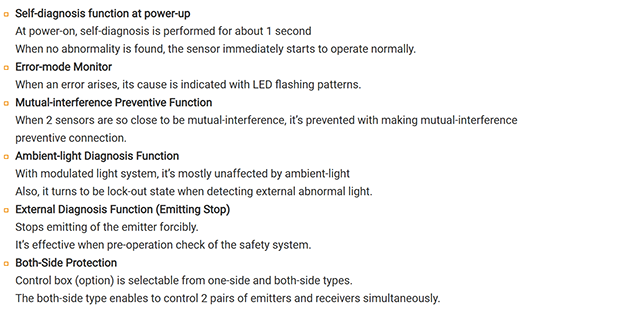

4. When an error arises, its cause is indicated with LED flashing patterns.
5. Employed pre-wired feature realizes simple cable connection and easy installation.
6. Employed direct projection type safety system makes it possible to adjust optical axes easily.
7.Control box is selectable from one-side and both-sides types, The both-sides type enables to control 2 pairs of emitters and receivers simultaneously.
Kinds
Detective distance
Optical axis pitch
Protection height
NO. of optical axis
Models
Models
0.2~6m
20mm
140mm
8
RSL230-140(S)
RSL230-140(W)
220mm
12
RSL230-220(S)
RSL230-220(W)
300mm
16
RSL230-300(S)
RSL230-300(W)
380mm
20
RSL230-380(S)
RSL230-380(W)
460mm
24
RSL230-460(S)
RSL230-460(W)
540mm
28
RSL230-540(S)
RSL230-540(W)
620mm
32
RSL230-620(S)
RSL230-620(W)
700mm
36
RSL230-700(S)
RSL230-700(W)
780mm
40
RSL230-780(S)
RSL230-780(W)
860mm
44
RSL230-860(S)
RSL230-860(W)
940mm
48
RSL230-940(S)
RSL230-940(W)
1020mm
52
RSL230-1020(S)
RSL230-1020(W)
1100mm
56
RSL230-1100(S)
RSL230-1100(W)
1180mm
60
RSL230-1180(S)
RSL230-1180(W)
1260mm
64
RSL230-1260(S)
RSL230-1260(W)
RIKEN Direct Projection Type-RPZ Series
Product Features
1. Failsafe design for the highest level safety.
2.Diverse line-up to cope with various usage environments.
3. Series connection function and error display function equipped.
4. Simple to adjust beams.
5. Mutual interference prevention.
RIKEN Direct Projection Type-RPX Series
Product Features
1. Failsafe design for the highest level safety.
2.Diverse line-up to cope with various usage environments.
3. Mutual interference prevention.
4. Various blanking functions equipped.

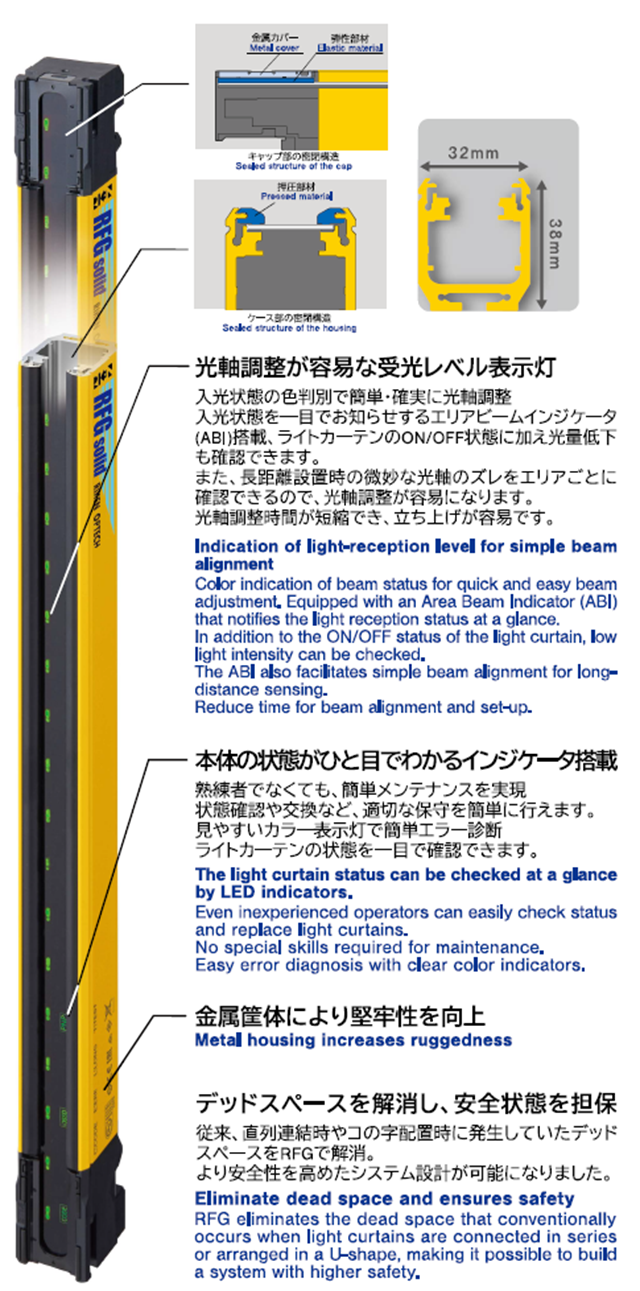

5. Indication of light-reception level for simple beam alignment.
6. Mounting brackets that significantly reduce influence of vibration.
