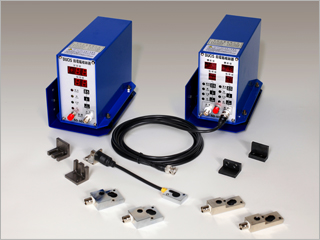

1.Sensor operation setup distance: Location(A)from 0.8mm to 1.2mm,please press setup switch thereafter 199-0 displayed ,Move the iron
block of the sensor head ,it can be adjusted to 80~120 as operation distance. (Meaning 0.8mm to 1.2mm ) Press setup switch again after
set-up process.
2.Operation of monitoring value setup: Accuracy range set up from ±1μm~±99μm,depends on your exact accuracy requirement.
3.While stamping die starts running, the first four times displaying digits meaning the average of the die-height testing.(It will be
re-calculated while stamping machine power off or the sensor line out of the basic unit and re-plug-in).
4.Self-Check functions available.
5.This product provides precision set-up value as 1μm, it is selectable against different accurate toolings.
6.Options available for Error-Carry-On, Missing material (by Electro-Eyes sensor) and Material Jammed (By sensoring Bar)
Specifications：
Operating Temperature Range
0~50℃
Standard Accessories
Sensor、Sensor line 3M、iron block
Weight
SD-401-2.2kg / SD-402- 2.3kg
Length of Sensor
10 cm
Output Contact
Relay Contacts（A..B）250V3A
Length of Join Cable
3M and 5M 2Models
Power Supply
AC85V~250V50/60Hz ±10%
Gap between and Proximity Element
0.8mm~1.2mm
Dimensions
105W*140H*185D
Maximum Speed
1200 S.P.M

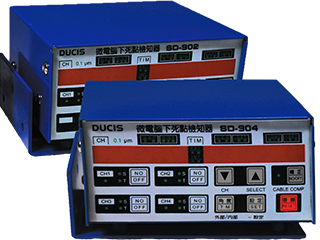

DUCIS SD-602/604
Product Features
SD-602-One basic unit, Dual output device ((Dual Port)
SD-604-One basic unit, Four output device (Four Ports)

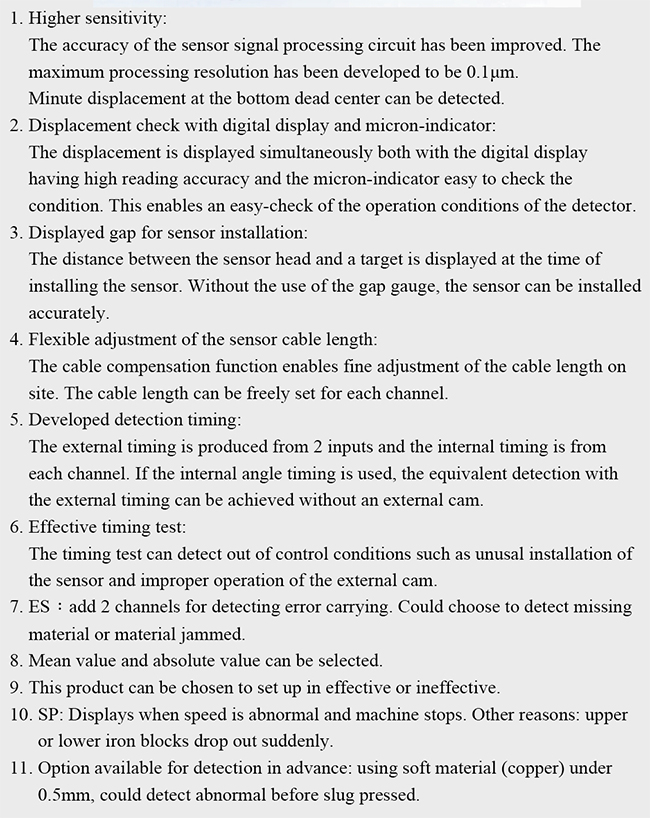

1.Higher sensitivity:
The accuracy of the sensor signal processing circuit has been improved. The
maximum processing resolution has been developed to be 0.1㎛.
Minute displacement at the bottom dead center can be detected.
2.Displacement check with digital display and micron-indicator:
The displacement is displayed simultaneously both with the digital display
having high reading accuracy and the micron-indicator easy to check the
condition. This enables an easy-check of the operation conditions of the detector.
3.Displayed gap for sensor installation:
The distance between the sensor head and a target is displayed at the time of
installing the sensor. Without the use of the gap gauge, the sensor can be installed
accurately.
4.Flexible adjustment of the sensor cable length:
The cable compensation function enables fine adjustment of the cable length on
site. The cable length can be freely set for each channel.
5.Developed detection timing:
The external timing is produced from 2 inputs and the internal timing is from
each channel. If the internal angle timing is used, the equivalent detection with
the external timing can be achieved without an external cam.
6.Effective timing test:
The timing test can detect out of control conditions such as unusal installation of
the sensor and improper operation of the external cam.
7.ES : add 2 channels for detecting error carrying. Could choose to detect missing
material or material jammed.
8.Mean value and absolute value can be selected.
9.This product can be chosen to set up in effective or ineffective.
10.SP: Displays when speed is abnormal and machine stops. Other reasons: upper
or lower iron blocks drop out suddenly.
11.Option available for detection in advance: using soft material (copper) under
0.5mm, could detect abnormal before slug pressed.

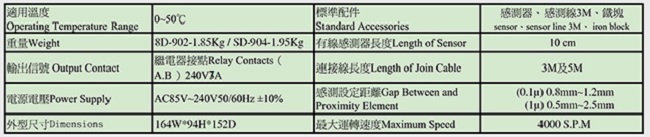

Specifications
Operating Temperature Range
0~50℃
Standard Accessories
Sensor、Sensor line 3M、iron block
Weight
SD-602-1.85kg / SD-604-1.95kg
Length of Sensor
10 cm
Output Contact
Relay Contacts（A..B）240V7A
Length of Join Cable
3M and 5M 2Models
Power Supply
AC85V~240V50/60Hz ±10%
Gap between and Proximity Element
0.1 µm 範圍:0.8~1.2mm 1µm 範圍:0.5~2.5mm
Dimensions
164W*94H*152D
Maximum Speed
4000 S.P.M

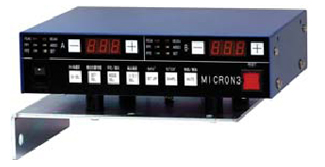

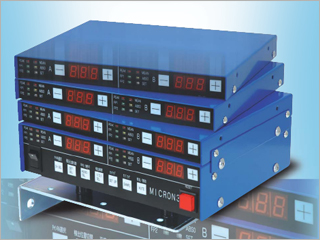

RIKEN MICRON III
MIC3-K
MIC3-B
Product Features
1.High Accuracy with 0.1μm resolution.
2.Simultaneously Monitors Rolling Average and Benchmark.
3.Fault Counter Function incorporated.
4.Automatic Sensor Calibration incorporated.
5.Slow Down Detecting Function employed.
6.Corresponds to Servo Press machine(Optional).
7.Various Sensors are provided.
8.Front Porch (One bound) Detection is available.

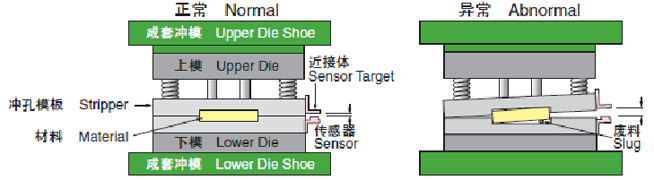

Detection Method
Specifications
Item
Model
Contents
Base Unit (2ch)
MIC3-B
Not include sensor
Additional Unit (2ch)
MIC3-K
Not include sensor
Sensor
KS-1010
Standard sensor
Junction Cables
3RC
Cable (3m)
5RC
Cable (5m)
Bracket
JMKS-1
Sensor Mounting Bracket and target
Standard Sensor
Kit Including Sensor(KS-1010),Junction Cable(3RC), Bracket(JMKS-1)
Optional Sensors
See the right sided figure
Variety of Optional Sensors
DUCIS SD-902/904
Product Features:
SD-902 One basic unit, Dual channels device(Dual Ports).
SD-904 One basic unit, Four channels device(Four Ports).
